Our Control Room Consoles are specifically designed and built to suit exacting needs. Prices are available upon request and only after an in-depth design & quote process.
$5,000 - $7,500 per seat is not a unusual starting price.

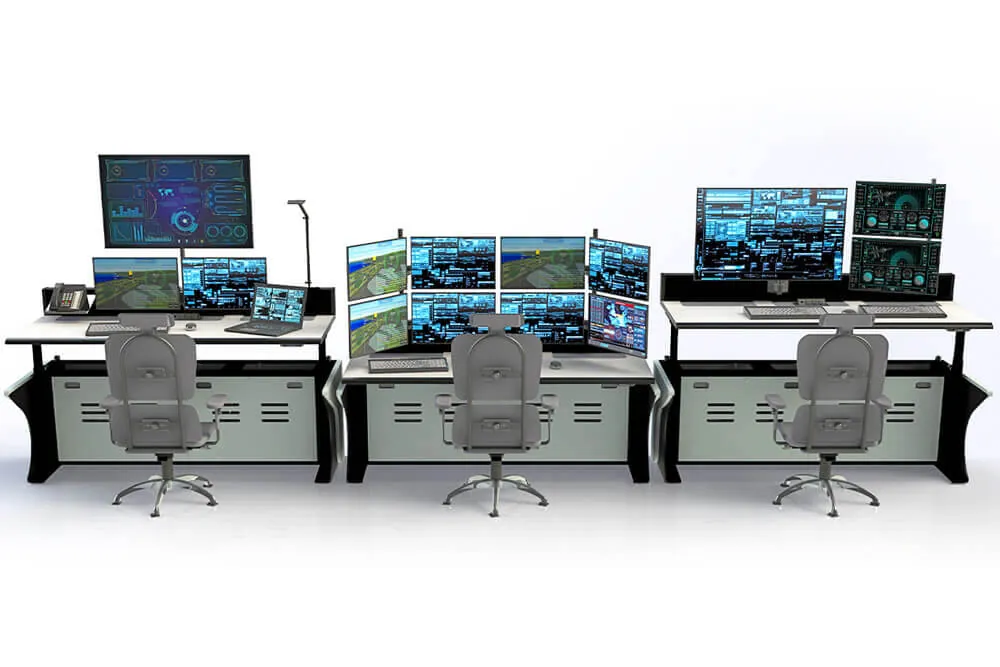

Height adjustable and ergonomic, designed to meet the rigorous demands of emergency operation environments, this line of control room furniture is expertly crafted to provide all the features required for 7x24 network operations centers, control rooms, and command console applications. This control console has been strategically engineered to offer all this functionality at a price point that fits your budget.

This versatile control room console can be configured in several corner configurations including 22.5°, 45°, 90°, reverse 22.5° and reverse 45° corners (please refer to the image on the left for a graphic explanation).

FEATURES & MATERIALS:

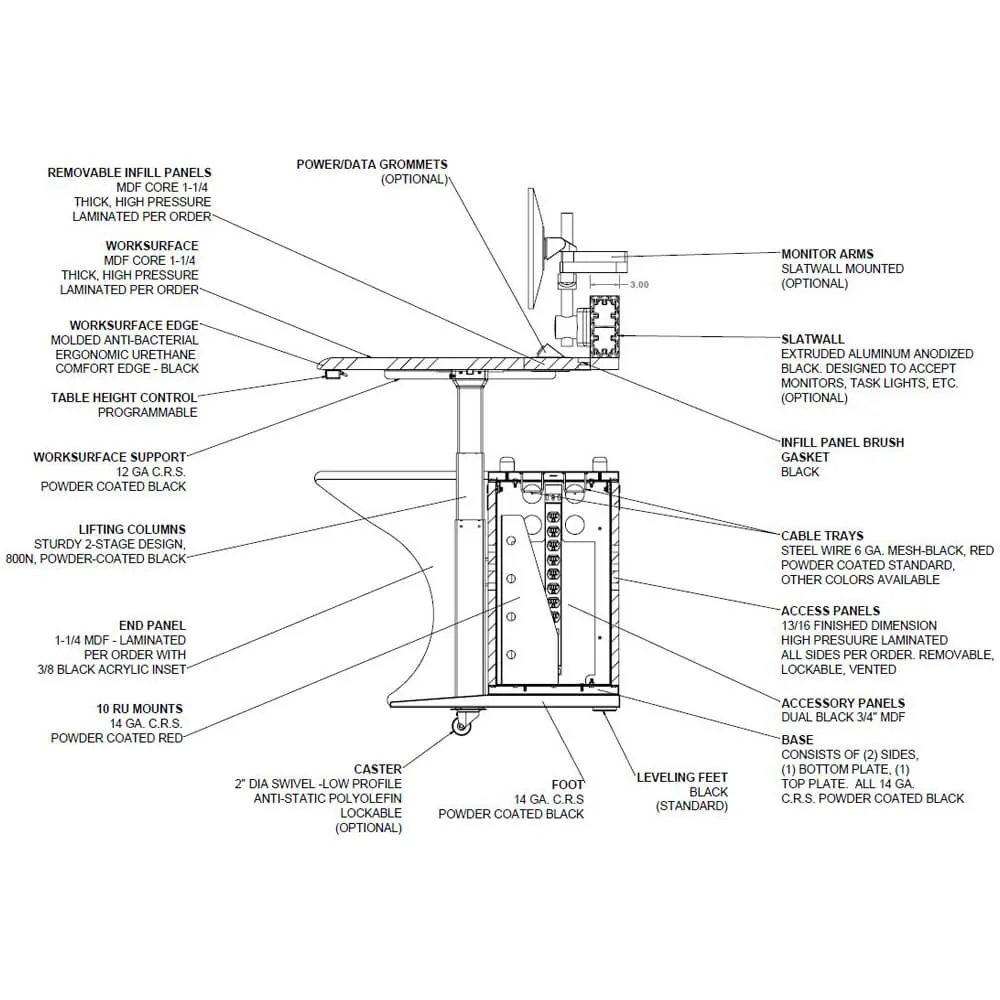

  Worksurface: 1-1/4” thick high pressure laminated MDF w/bonded MT comfort edge nosing

  Module widths include: 36”, 48”, 60”, 72”, 84” forward & reverse corner modules: 22.5°, 45°, 90°

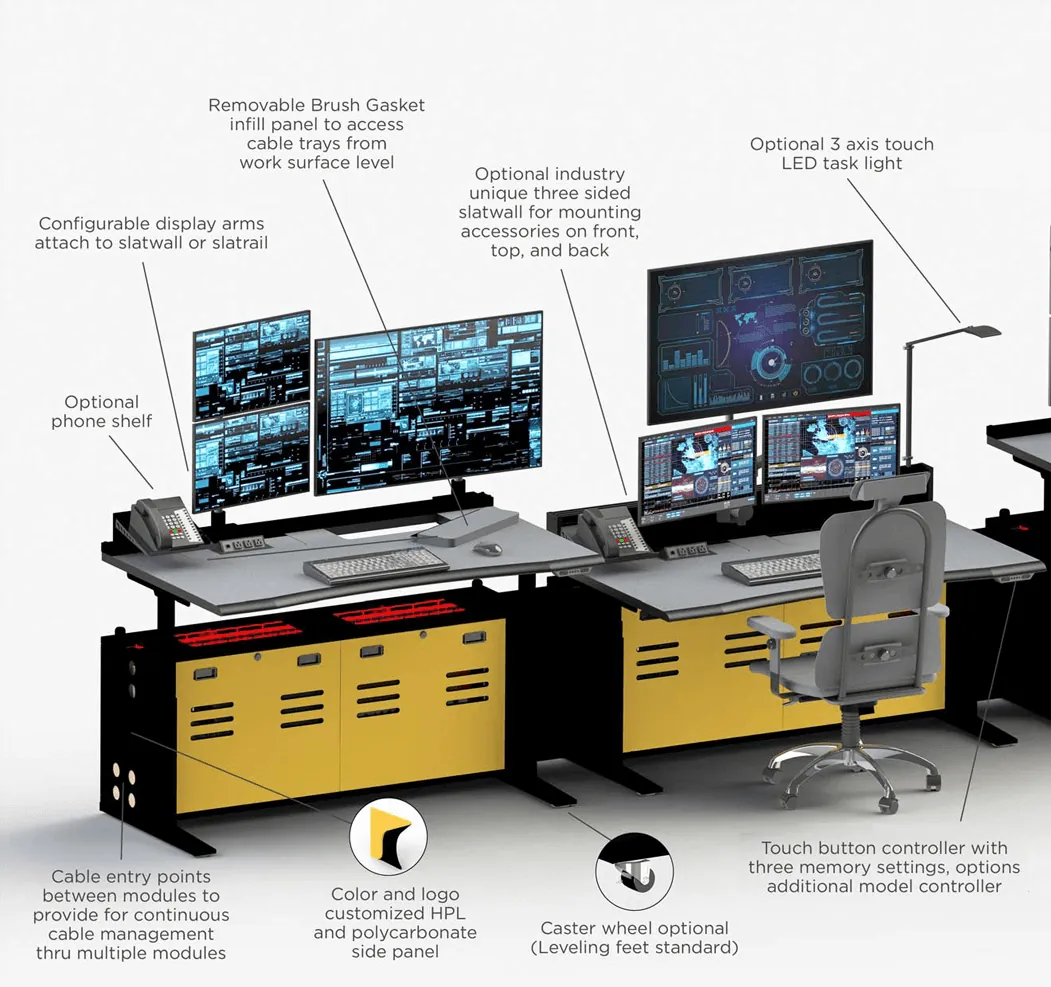

  Designed to utilize monitor arms to position displays vertically and horizontally for positive operator line of sight comfort

  MT6 ergonomic comfort edge nosing is extremely durable, impact and puncture resistant, permanently bonded seams, anti-bacterial and anti-fungal. UV resistant material, LEED credit certified

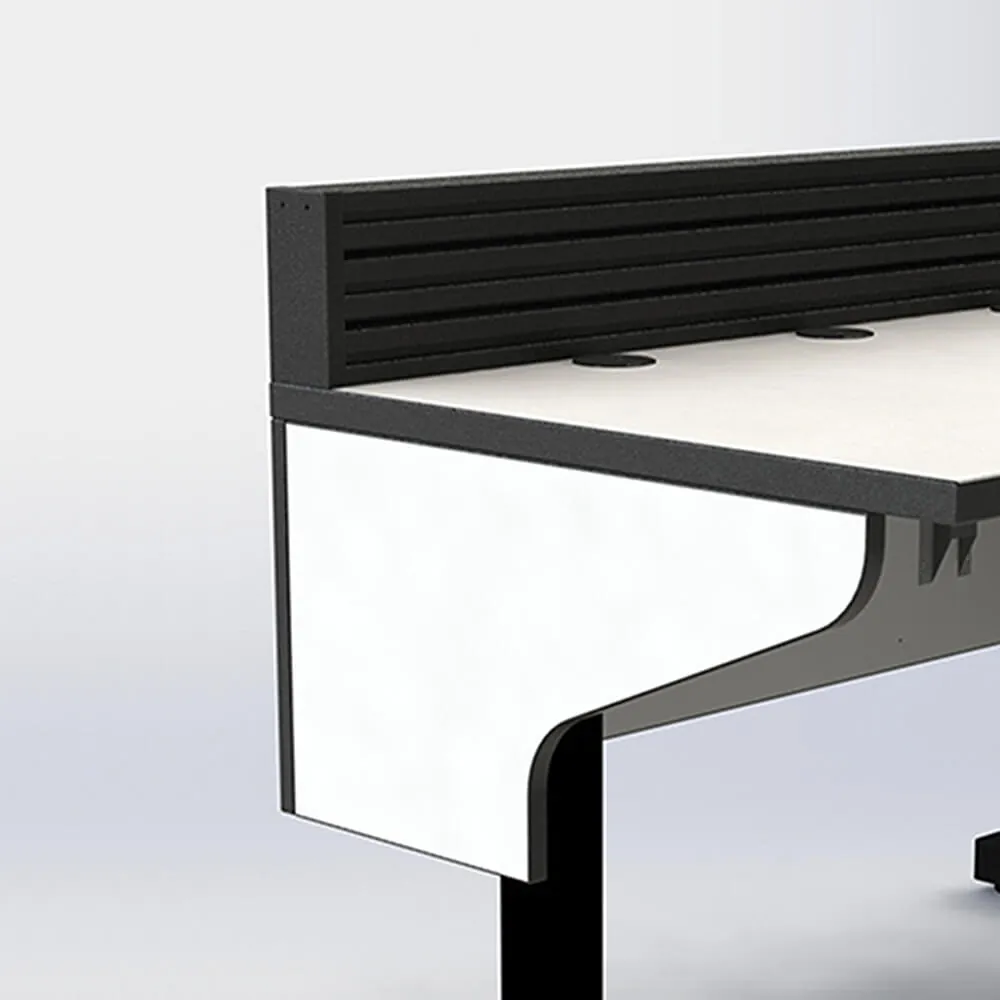

  End panels made of 1 1/4 ” thickness high pressure laminated MDF with 1mm PVC edging with a 3/8” black acrylic inset

  Black & red color coated cable trays are constructed from 6 gage powder coated wire. Cable tray design meets NIPR/SIPR security protocols

  Vertical legs made from 14 gauge powder coated cold rolled steel with a sub-frame structure made from black powder coated 14 ga C.r.s

  Perforated bottom CPU shelf with cable entry points made from 14 gage powder coated cold rolled steel and allows for air circulation throughout equipment storage internal frame

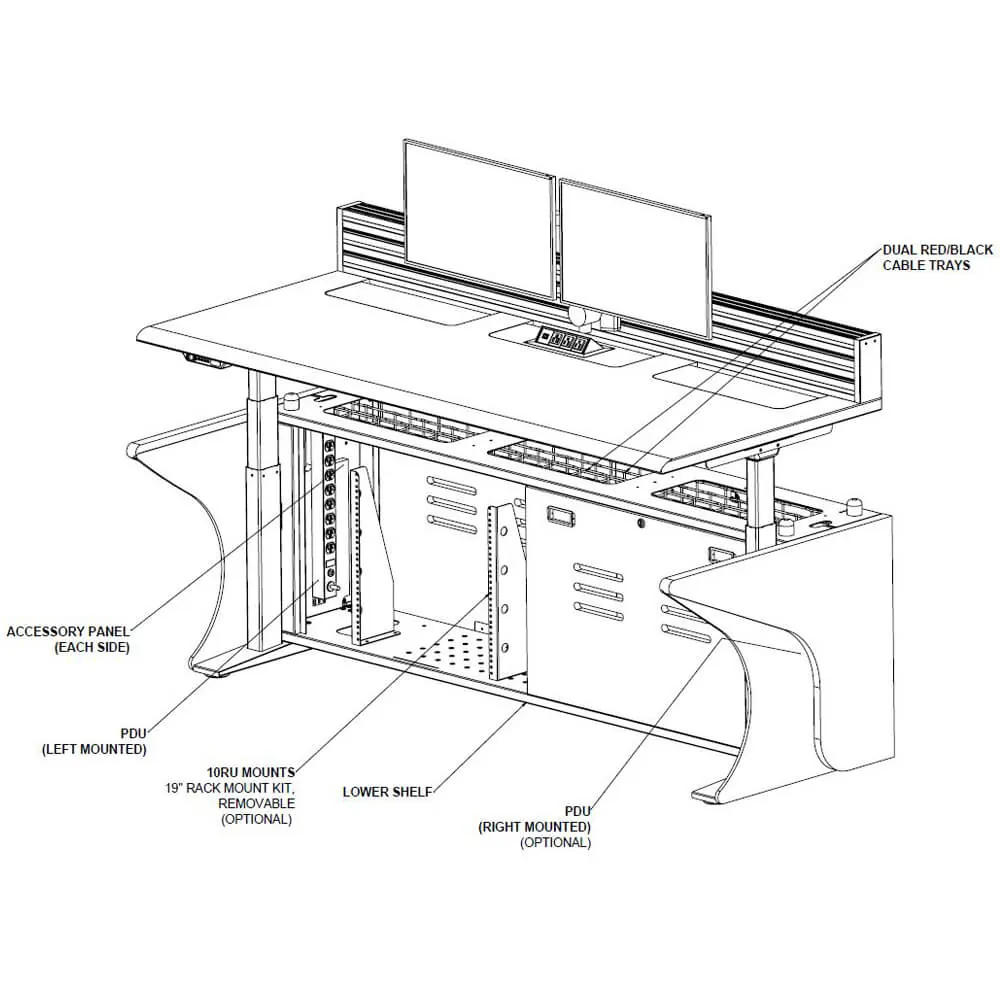

  Standard modules to include up to 12U of 19 Inch rackmount capability

  Ventilated front and rear doors lift off for easy access to internal equipment storage area. Doors constructed of 3/4 high pressure laminate with MDF cores with built-in lock ability

  (2) Internal MDF mounting surfaces under cabinet for power distribution units & patch panels

  Easy lift off infill panels integrated with the work surface allow for easy access to cable trays from above. Brushes in the lift off panels create a space to route wire and cables while also preventing pencils, etc. from falling into the cabinet

  Almost indestructible low profile horizontal slatrail or three sided vertical/horizontal slatwall made from extruded anodized aluminum designed to accept monitor arms, task lights and accessories

  Product meets all ANSI BIFMA X5.5 safety and performance product standards

  Powered and synchronized three-part column leg adjustable lift system with a load capacity of 1200N column

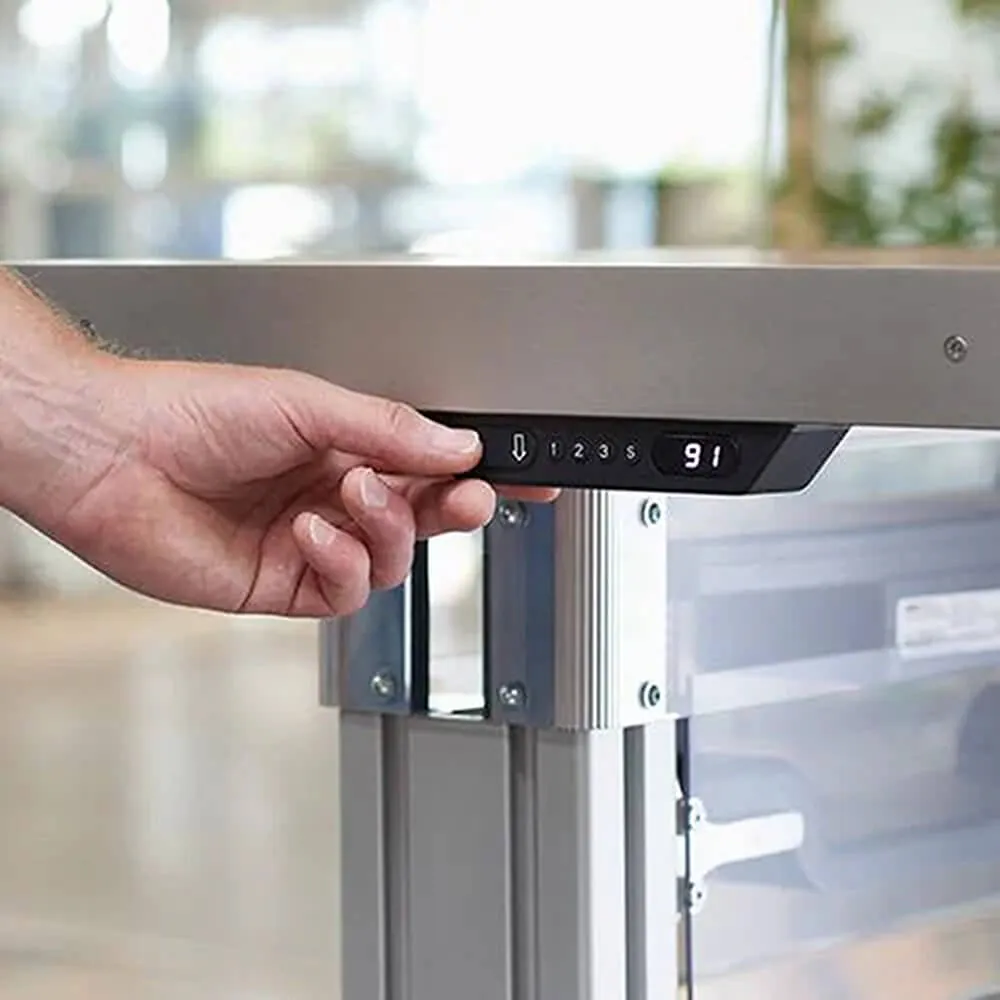

  Programmable push button control system with three memory settings

  Additional lift column options available depending on lift requirement

PLEASE NOTE:

colors may vary depending on your monitor - CONTACT US for accurate samples

Please consider all factors influencing color perception when choosing panel color. Natural or artificial light, time of day, and surrounding hues in your office environment, all can influence one's visual perception of color.
